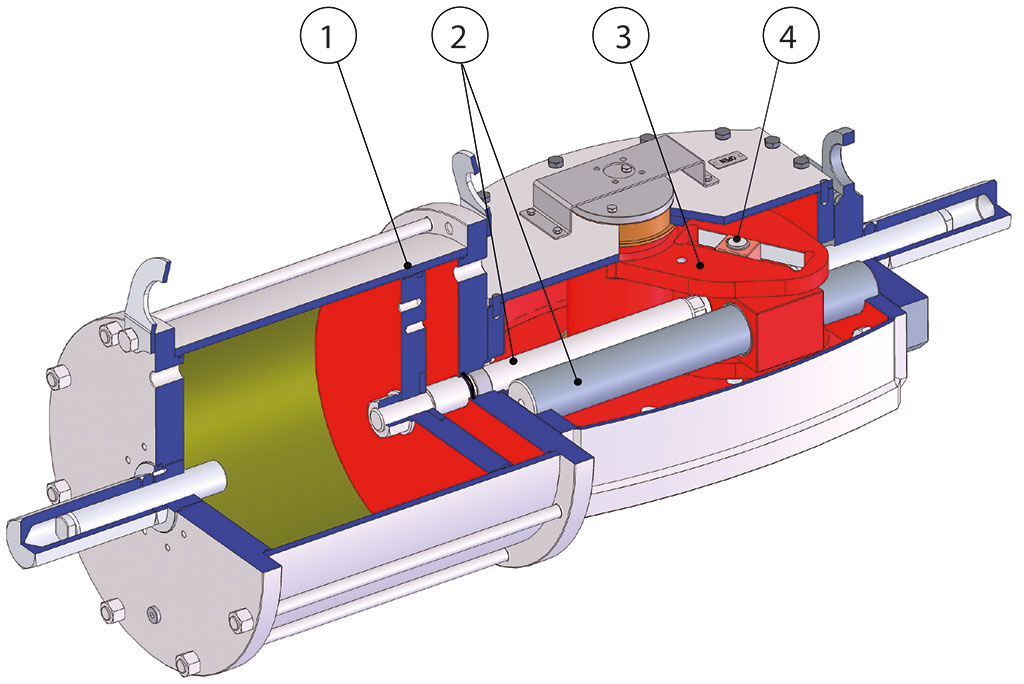

1 Gleitleisten aus graphitverstärktem PTFE
Weniger Reibung zwischen Kolben und Zylinder
Das Anhaften der Gleitleisten am Zylinder wird auch nach langen Standzeiten verhindert
Mindert den Stick-Slip-Effekt
2 Spindel und Führungsstange aus verchromtem Stahl mit einer Härte von ungefähr 200 HB
Höhere Korrosionsbeständigkeit
Weniger Reibung zwischen Spindel, Führungsstange und Gleitbuchsen und folglich weniger Verschleiß von relevanten Teilen
3 Umstellung des Bewegungsmechanismus von Linearhub auf Drehbewegung unabhängig vom Steuermedium des Antriebs
Betrieb mit technischen Gasen möglich
Explosionsgefährdete Umgebungen vermeiden
4 Kurbelschleife mit Rollwiderstand (Umwandlung der linearen in eine Drehbewegung mittels System ohne Zahnräder)
Geringerer Verschleiß der Teile durch den geringeren Widerstand zwischen Kolben und Welle
Verbessertes Drehmoment beim Öffnen und Schließen
Buchsen aus Bronze
Gewährleisten geringeren Verschleiß im Vergleich zu Buchsen aus anderem Material
ATEX Compliance
Ermöglicht die Installation in explosionsgefährdeten Umgebungen
Zertifikat bis SIL 3
Hohe Funktionssicherheit
Technische Daten:
Nenndrehmomente: von 2000 Nm bis etwa 32.000 Nm.
Flansche nach DIN / ISO 5211, DIN 3337.
Rotation angle: 100° (-5°, +95°).
Double adjusting +5° and -5° for each end position (0° and 90°).
Versorgungsdruck: von 3 bar bis 8,5 bar (Drehmomente siehe Tabellen).
Bei der doppeltwirkenden Ausführung ist das Drehmoment direkt proportional zum Versorgungsdruck des Antriebs.
Bei der einfachwirkenden Ausführung hängt das Rückstellmoment (keine Versorgung im Antrieb) nur von der Wirkung der Feder ab und ist unabhängig vom Versorgungsdruck.
Erhältliche Ausführungen: Doppeltwirkend, normal geschlossen (NC), normal offen (NO).

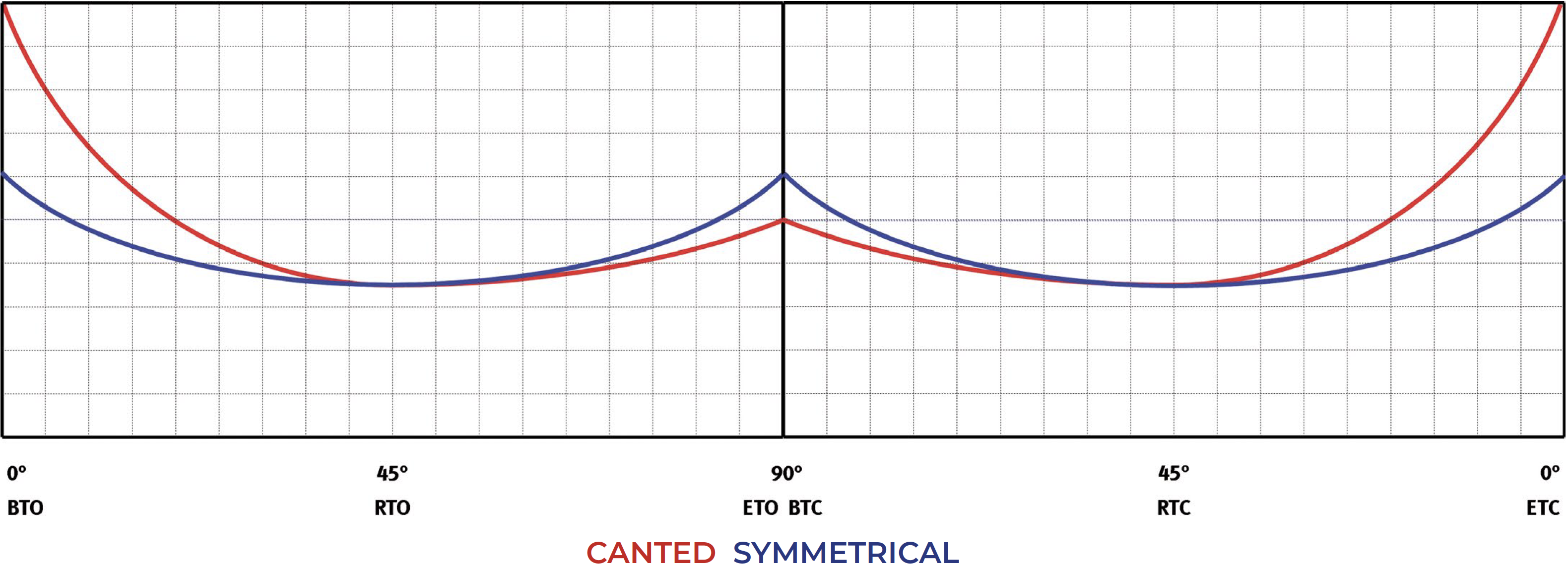

Konfigurationen des Zentralgehäuses: Symmetrische Kurbelschleife (symmetrical) oder asymmetrische Kurbelschleife (canted)
Betriebsbedingungen:
Temperaturbereich: Standardausführung: -20°C bis + 80°C (Dichtungsmaterial: NBR) .
Versorgungsmedien: Gefilterte, nicht unbedingt geschmierte Druckluft; inerte Gase, technische Gase.
Bei Temperaturen unter 0°C bitte trockene Luft verwenden.
Bei Verwendung von geschmierter Luft nicht reinigendes Öl verwenden, das mit dem Dichtungsmaterial kompatibel ist.
Konstruktionsnormen:
Ausführung nach EN 15714-3, ISO 5211, ISO 12490.

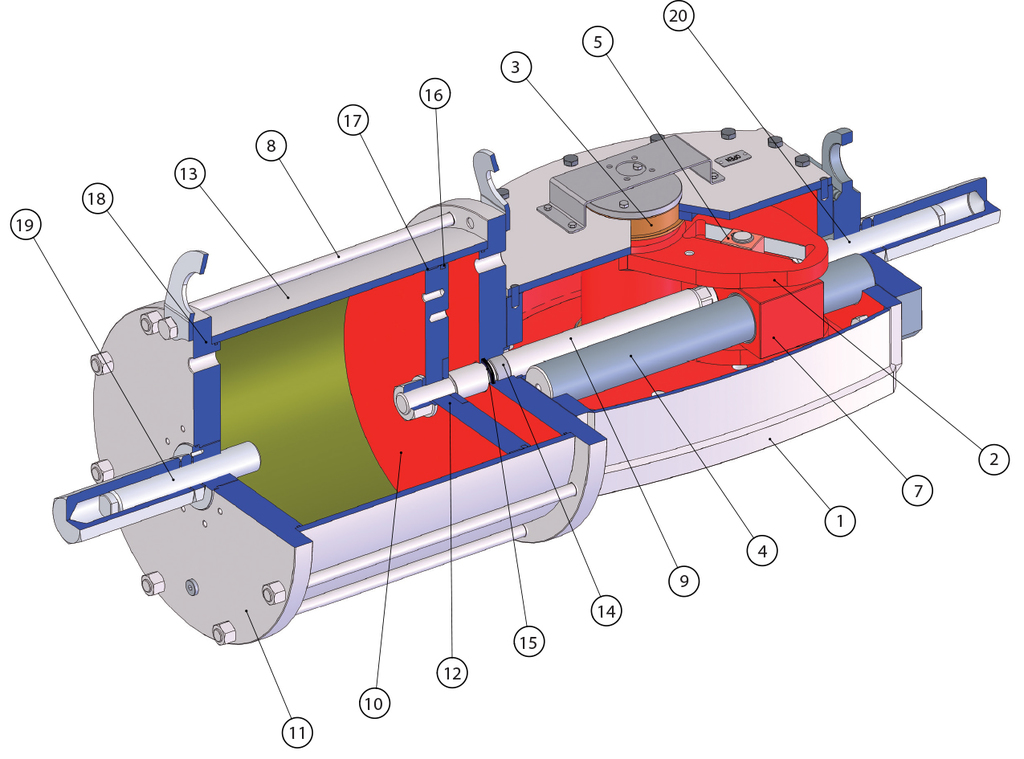

Pos | Beschreibung | Werkstoffe |
1 | Zentralgehäuse | Carbonstahl |
2 | Gabel | Carbonstahl |
3 | Gabelbuchse | Bronze |
4 | Führungsstange | Stahllegierung (verchromt) |
5 | Gleitbuchse | Bronze |
6 | Entlüftungsventil (nicht abgebildet) | Messing |
7 | Führungssperre | Carbonstahl |
8 | Gewindebolzen | Stahllegierung |
9 | Kolbenstange | Stahllegierung (verchromt) |
10 | Kolben | Carbonstahl |
11 | Flansch | Carbonstahl |
12 | O-Ring | Nitrilic rubber |
13 | Zylinder | Carbonstahl (vernickelt) |
14 | Buchse Kolbenstange | Stahl + Bronze + PTFE |
15 | Dichtung | NBR + Polyurethan |
16 | O-Ring | Nitrilic rubber |
17 | Gleitring | PTFE + Graphit |
18 | O-Ring | Nitrilic rubber |
19 | Justierschraube | Stahllegierung |
20 | Justierschraube | Stahllegierung |
Modellnummer | Maximales Drehmoment Nm | 3 BAR ASYMMETRISCH Abtriebsdrehmoment (Nm) | |||||
BTO | RTO | ETO | BTC | RTC | ETC | ||
DAHG-085C-235A-D1 | 9.000 | 2.327 | 908 | 1.289 | 1.229 | 895 | 2.528 |
DAHG-085C-280A-D1 | 9.000 | 3.304 | 1.290 | 1.830 | 1.754 | 1.278 | 3.607 |
DAHG-085C-335A-D1 | 9.000 | 4.730 | 1.847 | 2.620 | 2.513 | 1.830 | 5.167 |
DAHG-085C-385A-D1 | 9.000 | 6.269 | 2.448 | 3.472 | 3.340 | 2.433 | 6.867 |
DAHG-085C-435A-D1 | 9.000 | 8.030 | 3.135 | 4.448 | 4.286 | 3.122 | 8.812 |
DAHG-100C-335A-D1 | 18.000 | 5.637 | 2.229 | 3.122 | 2.995 | 2.238 | 6.157 |
DAHG-100C-385A-D1 | 18.000 | 7.471 | 2.955 | 4.138 | 3.980 | 2.974 | 8.183 |
DAHG-100C-435A-D1 | 18.000 | 9.570 | 3.785 | 5.300 | 5.107 | 3.816 | 10.502 |
DAHG-100C-485A-D1 | 18.000 | 11.896 | 4.705 | 6.589 | 6.357 | 4.750 | 13.071 |
DAHG-100C-535A-D1 | 18.000 | 14.441 | 5.665 | 7.921 | 7.664 | 5.625 | 15.794 |
DAHG-130C-385A-D1 | 32.000 | 9.808 | 3.830 | 5.433 | 5.212 | 3.797 | 10.715 |
DAHG-130C-435A-D1 | 32.000 | 12.564 | 4.906 | 6.960 | 6.677 | 4.864 | 13.728 |
DAHG-130C-485A-D1 | 32.000 | 15.618 | 6.098 | 8.651 | 8.319 | 6.060 | 17.102 |
DAHG-130C-535A-D1 | 32.000 | 19.069 | 7.446 | 10.563 | 10.173 | 7.410 | 20.914 |
DAHG-130C-585A-D1 | 32.000 | 22.877 | 8.933 | 12.672 | 12.219 | 8.901 | 25.121 |
DAHG-130C-635A-D1 | 32.000 | 27.046 | 10.561 | 14.982 | 14.459 | 10.533 | 29.725 |
Modellnummer | Maximales Drehmoment Nm | 3 BAR SYMMETRISCH Abtriebsdrehmoment (Nm) | |||||
BTO | RTO | ETO | BTC | RTC | ETC | ||
DAHG-085S-235A-D1 | 9.000 | 1.482 | 920 | 1.620 | 1.457 | 906 | 1.593 |
DAHG-085S-280A-D1 | 9.000 | 2.104 | 1.306 | 2.300 | 2.079 | 1.293 | 2.273 |
DAHG-085S-335A-D1 | 9.000 | 3.012 | 1.870 | 3.293 | 2.979 | 1.852 | 3.256 |
DAHG-085S-385A-D1 | 9.000 | 3.992 | 2.478 | 4.364 | 3.959 | 2.462 | 4.327 |
DAHG-085S-435A-D1 | 9.000 | 5.114 | 3.174 | 5.590 | 5.080 | 3.160 | 5.553 |
DAHG-100S-335A-D1 | 18.000 | 3.585 | 2.225 | 3.918 | 3.532 | 2.197 | 3.861 |
DAHG-100S-385A-D1 | 18.000 | 4.751 | 2.949 | 5.193 | 4.699 | 2.922 | 5.136 |
DAHG-100S-435A-D1 | 18.000 | 6.086 | 3.778 | 6.652 | 6.020 | 3.744 | 6.580 |
DAHG-100S-485A-D1 | 18.000 | 7.565 | 4.696 | 8.269 | 7.499 | 4.664 | 8.197 |
DAHG-100S-535A-D1 | 18.000 | 9.172 | 5.732 | 10.116 | 9.107 | 5.692 | 10.044 |
DAHG-100S-585A-D1 | 18.000 | 10.966 | 6.854 | 12.095 | 10.901 | 6.813 | 12.024 |
DAHG-130S-385A-D1 | 32.000 | 6.247 | 3.877 | 6.828 | 6.178 | 3.842 | 6.753 |
DAHG-130S-435A-D1 | 32.000 | 8.002 | 4.967 | 8.746 | 7.915 | 4.922 | 8.651 |
DAHG-130S-485A-D1 | 32.000 | 9.947 | 6.174 | 10.873 | 9.860 | 6.132 | 10.777 |
DAHG-130S-535A-D1 | 32.000 | 12.145 | 7.539 | 13.275 | 12.058 | 7.499 | 13.180 |
DAHG-130S-585A-D1 | 32.000 | 14.570 | 9.044 | 15.926 | 14.483 | 9.008 | 15.831 |
DAHG-130S-635A-D1 | 32.000 | 17.225 | 10.692 | 18.828 | 17.138 | 10.659 | 18.733 |
Modellnummer | Maximales Drehmoment Nm | 3,5 BAR ASYMMETRISCH Abtriebsdrehmoment (Nm) | |||||
BTO | RTO | ETO | BTC | RTC | ETC | ||
DAHG-085C-235A-D1 | 9.000 | 2.725 | 1.064 | 1.509 | 1.439 | 1.048 | 2.960 |
DAHG-085C-280A-D1 | 9.000 | 3.868 | 1.510 | 2.143 | 2.054 | 1.496 | 4.223 |
DAHG-085C-335A-D1 | 9.000 | 5.537 | 2.162 | 3.067 | 2.942 | 2.143 | 6.049 |
DAHG-085C-385A-D1 | 9.000 | 7.335 | 2.864 | 4.063 | 3.908 | 2.847 | 8.035 |
DAHG-085C-435A-D1 | 9.000 | ||||||
DAHG-100C-335A-D1 | 18.000 | 6.589 | 2.573 | 3.650 | 3.489 | 2.541 | 7.173 |
DAHG-100C-385A-D1 | 18.000 | 8.729 | 3.408 | 4.835 | 4.638 | 3.379 | 9.536 |
DAHG-100C-435A-D1 | 18.000 | 11.176 | 4.364 | 6.190 | 5.940 | 4.327 | 12.211 |
DAHG-100C-485A-D1 | 18.000 | 13.879 | 5.489 | 7.687 | 7.417 | 5.542 | 15.250 |
DAHG-100C-535A-D1 | 18.000 | ||||||
DAHG-130C-385A-D1 | 32.000 | 11.476 | 4.481 | 6.357 | 6.099 | 4.443 | 12.538 |
DAHG-130C-435A-D1 | 32.000 | 14.694 | 5.737 | 8.139 | 7.809 | 5.689 | 16.055 |
DAHG-130C-485A-D1 | 32.000 | 18.266 | 7.132 | 10.118 | 9.729 | 7.087 | 20.001 |
DAHG-130C-535A-D1 | 32.000 | 22.290 | 8.704 | 12.347 | 11.891 | 8.662 | 24.447 |
DAHG-130C-585A-D1 | 32.000 | 26.729 | 10.437 | 14.806 | 14.276 | 10.400 | 29.350 |
DAHG-130C-635A-D1 | 32.000 |
Modellnummer | Maximales Drehmoment Nm | 3,5 BAR SYMMETRISCH Abtriebsdrehmoment (Nm) | |||||
BTO | RTO | ETO | BTC | RTC | ETC | ||
DAHG-085S-235A-D1 | 9.000 | 1.735 | 1.077 | 1.897 | 1.706 | 1.061 | 1.865 |
DAHG-085S-280A-D1 | 9.000 | 2.463 | 1.529 | 2.693 | 2.435 | 1.514 | 2.661 |
DAHG-085S-335A-D1 | 9.000 | 3.526 | 2.189 | 3.855 | 3.487 | 2.169 | 3.812 |
DAHG-085S-385A-D1 | 9.000 | 4.671 | 2.900 | 5.106 | 4.632 | 2.881 | 5.063 |
DAHG-085S-435A-D1 | 9.000 | 5.981 | 3.712 | 6.538 | 5.942 | 3.695 | 6.495 |
DAHG-100S-335A-D1 | 18.000 | 4.196 | 2.605 | 4.587 | 4.135 | 2.572 | 4.520 |
DAHG-100S-385A-D1 | 18.000 | 5.559 | 3.451 | 6.076 | 5.498 | 3.419 | 6.010 |
DAHG-100S-435A-D1 | 18.000 | 7.117 | 4.418 | 7.780 | 7.040 | 4.379 | 7.695 |
DAHG-100S-485A-D1 | 18.000 | 8.848 | 5.492 | 9.671 | 8.770 | 5.455 | 9.587 |
DAHG-100S-535A-D1 | 18.000 | 10.700 | 6.688 | 11.802 | 10.625 | 6.641 | 11.718 |
DAHG-100S-585A-D1 | 18.000 | 12.794 | 7.996 | 14.111 | 12.718 | 7.949 | 14.027 |
DAHG-130S-385A-D1 | 32.000 | 7.309 | 4.537 | 7.989 | 7.229 | 4.496 | 7.901 |
DAHG-130S-435A-D1 | 32.000 | 9.358 | 5.809 | 10.229 | 9.256 | 5.757 | 10.118 |
DAHG-130S-485A-D1 | 32.000 | 11.633 | 7.221 | 12.716 | 11.531 | 7.172 | 12.604 |
DAHG-130S-535A-D1 | 32.000 | 14.196 | 8.812 | 15.517 | 14.095 | 8.766 | 15.406 |
DAHG-130S-585A-D1 | 32.000 | 17.023 | 10.567 | 18.607 | 16.921 | 10.524 | 18.496 |
DAHG-130S-635A-D1 | 32.000 | 20.115 | 12.486 | 21.987 | 20.013 | 12.448 | 21.876 |
Modellnummer | Maximales Drehmoment Nm | 4 BAR ASYMMETRISCH Abtriebsdrehmoment (Nm) | |||||
BTO | RTO | ETO | BTC | RTC | ETC | ||
DAHG-085C-235A-D1 | 9.000 | 3.122 | 1.219 | 1.729 | 1.649 | 1.201 | 3.391 |
DAHG-085C-280A-D1 | 9.000 | 4.432 | 1.730 | 2.455 | 2.353 | 1.714 | 4.839 |
DAHG-085C-335A-D1 | 9.000 | 6.345 | 2.477 | 3.514 | 3.371 | 2.456 | 6.931 |
DAHG-085C-385A-D1 | 9.000 | ||||||
DAHG-085C-435A-D1 | 9.000 | ||||||
DAHG-100C-335A-D1 | 18.000 | 7.561 | 2.990 | 4.188 | 4.017 | 3.001 | 8.259 |
DAHG-100C-385A-D1 | 18.000 | 10.012 | 3.959 | 5.545 | 5.334 | 3.985 | 10.967 |
DAHG-100C-435A-D1 | 18.000 | 12.813 | 5.068 | 7.097 | 6.839 | 5.110 | 14.062 |
DAHG-100C-485A-D1 | 18.000 | 15.928 | 6.299 | 8.822 | 8.512 | 6.360 | 17.503 |
DAHG-100C-535A-D1 | 18.000 | ||||||
DAHG-130C-385A-D1 | 32.000 | 13.145 | 5.132 | 7.281 | 6.985 | 5.089 | 14.361 |
DAHG-130C-435A-D1 | 32.000 | 16.823 | 6.569 | 9.319 | 8.941 | 6.513 | 18.383 |
DAHG-130C-485A-D1 | 32.000 | 20.913 | 8.166 | 11.584 | 11.139 | 8.114 | 22.900 |
DAHG-130C-535A-D1 | 32.000 | 25.512 | 9.962 | 14.132 | 13.610 | 9.914 | 27.980 |
DAHG-130C-585A-D1 | 32.000 | ||||||
DAHG-130C-635A-D1 | 32.000 |
Modellnummer | Maximales Drehmoment Nm | 4 BAR SYMMETRISCH Abtriebsdrehmoment (Nm) | |||||
BTO | RTO | ETO | BTC | RTC | ETC | ||
DAHG-085S-235A-D1 | 9.000 | 1.988 | 1.234 | 2.173 | 1.955 | 1.216 | 2.137 |
DAHG-085S-280A-D1 | 9.000 | 2.823 | 1.752 | 3.085 | 2.790 | 1.735 | 3.049 |
DAHG-085S-335A-D1 | 9.000 | 4.041 | 2.508 | 4.417 | 3.996 | 2.485 | 4.368 |
DAHG-085S-385A-D1 | 9.000 | 5.350 | 3.321 | 5.848 | 5.305 | 3.300 | 5.799 |
DAHG-085S-435A-D1 | 9.000 | 6.848 | 4.251 | 7.485 | 6.803 | 4.231 | 7.436 |
DAHG-100S-335A-D1 | 18.000 | 4.808 | 2.985 | 5.256 | 4.739 | 2.947 | 5.180 |
DAHG-100S-385A-D1 | 18.000 | 6.367 | 3.952 | 6.960 | 6.297 | 3.917 | 6.883 |
DAHG-100S-435A-D1 | 18.000 | 8.149 | 5.058 | 8.907 | 8.061 | 5.013 | 8.811 |
DAHG-100S-485A-D1 | 18.000 | 10.130 | 6.288 | 11.073 | 10.042 | 6.246 | 10.976 |
DAHG-100S-535A-D1 | 18.000 | 12.229 | 7.643 | 13.488 | 12.143 | 7.589 | 13.392 |
DAHG-100S-585A-D1 | 18.000 | 14.622 | 9.139 | 16.127 | 14.535 | 9.085 | 16.031 |
DAHG-130S-385A-D1 | 32.000 | 8.371 | 5.196 | 9.150 | 8.280 | 5.150 | 9.050 |
DAHG-130S-435A-D1 | 32.000 | 10.714 | 6.651 | 11.711 | 10.598 | 6.592 | 11.584 |
DAHG-130S-485A-D1 | 32.000 | 13.319 | 8.268 | 14.558 | 13.203 | 8.212 | 14.431 |
DAHG-130S-535A-D1 | 32.000 | 16.248 | 10.086 | 17.760 | 16.132 | 10.033 | 17.633 |
DAHG-130S-585A-D1 | 32.000 | 19.476 | 12.089 | 21.288 | 19.360 | 12.041 | 21.161 |
DAHG-130S-635A-D1 | 32.000 | 23.005 | 14.280 | 25.146 | 22.889 | 14.236 | 25.019 |
Modellnummer | Maximales Drehmoment Nm | 4,5 BAR ASYMMETRISCH Abtriebsdrehmoment (Nm) | |||||
BTO | RTO | ETO | BTC | RTC | ETC | ||
DAHG-085C-235A-D1 | 9.000 | 3.553 | 1.394 | 1.949 | 1.857 | 1.363 | 3.826 |
DAHG-085C-280A-D1 | 9.000 | 5.044 | 1.978 | 2.766 | 2.653 | 1.947 | 5.468 |
DAHG-085C-335A-D1 | 9.000 | 7.220 | 2.832 | 3.960 | 3.816 | 2.801 | 7.865 |
DAHG-085C-385A-D1 | 9.000 | ||||||
DAHG-085C-435A-D1 | 9.000 | ||||||
DAHG-100C-335A-D1 | 18.000 | 8.493 | 3.332 | 4.659 | 4.490 | 3.295 | 9.253 |
DAHG-100C-385A-D1 | 18.000 | 11.218 | 4.400 | 6.153 | 5.946 | 4.364 | 12.254 |
DAHG-100C-435A-D1 | 18.000 | 14.321 | 5.618 | 7.855 | 7.572 | 5.557 | 15.605 |
DAHG-100C-485A-D1 | 18.000 | ||||||
DAHG-100C-535A-D1 | 18.000 | ||||||
DAHG-130C-385A-D1 | 32.000 | 14.833 | 5.792 | 8.216 | 7.883 | 5.742 | 16.206 |
DAHG-130C-435A-D1 | 32.000 | 18.974 | 7.409 | 10.510 | 10.085 | 7.347 | 20.733 |
DAHG-130C-485A-D1 | 32.000 | 23.586 | 9.210 | 13.065 | 12.563 | 9.152 | 25.829 |
DAHG-130C-535A-D1 | 32.000 | 28.701 | 11.207 | 15.899 | 15.311 | 11.153 | 31.478 |
DAHG-130C-585A-D1 | 32.000 | ||||||
DAHG-130C-635A-D1 | 32.000 |
Modellnummer | Maximales Drehmoment Nm | 4,5 BAR SYMMETRISCH Abtriebsdrehmoment (Nm) | |||||
BTO | RTO | ETO | BTC | RTC | ETC | ||
DAHG-085S-235A-D1 | 9.000 | 2.256 | 1.410 | 2.489 | 2.206 | 1.379 | 2.433 |
DAHG-085S-280A-D1 | 9.000 | 3.203 | 2.002 | 3.533 | 3.153 | 1.971 | 3.478 |
DAHG-085S-335A-D1 | 9.000 | 4.585 | 2.866 | 5.057 | 4.535 | 2.834 | 5.002 |
DAHG-085S-385A-D1 | 9.000 | 6.056 | 3.785 | 6.679 | 6.006 | 3.754 | 6.624 |
DAHG-085S-435A-D1 | 9.000 | 7.731 | 4.832 | 8.527 | 7.681 | 4.801 | 8.472 |
DAHG-100S-335A-D1 | 18.000 | 5.394 | 3.371 | 5.949 | 5.335 | 3.335 | 5.885 |
DAHG-100S-385A-D1 | 18.000 | 7.125 | 4.453 | 7.858 | 7.066 | 4.416 | 7.793 |
DAHG-100S-435A-D1 | 18.000 | 9.095 | 5.685 | 10.032 | 8.998 | 5.624 | 9.924 |
DAHG-100S-485A-D1 | 18.000 | 11.306 | 7.067 | 12.470 | 11.209 | 7.006 | 12.363 |
DAHG-100S-535A-D1 | 18.000 | 13.758 | 8.599 | 15.174 | 13.660 | 8.538 | 15.067 |
DAHG-100S-585A-D1 | 18.000 | ||||||
DAHG-130S-385A-D1 | 32.000 | 9.446 | 5.864 | 10.326 | 9.344 | 5.811 | 10.213 |
DAHG-130S-435A-D1 | 32.000 | 12.084 | 7.501 | 13.208 | 11.954 | 7.435 | 13.066 |
DAHG-130S-485A-D1 | 32.000 | 15.022 | 9.325 | 16.420 | 14.891 | 9.262 | 16.277 |
DAHG-130S-535A-D1 | 32.000 | 18.316 | 11.370 | 20.021 | 18.185 | 11.310 | 19.877 |
DAHG-130S-585A-D1 | 32.000 | 21.944 | 13.622 | 23.986 | 21.813 | 13.567 | 23.843 |
DAHG-130S-635A-D1 | 32.000 | 25.907 | 16.081 | 28.318 | 25.776 | 16.032 | 28.175 |
Modellnummer | Maximales Drehmoment Nm | 5 BAR ASYMMETRISCH Abtriebsdrehmoment (Nm) | |||||
BTO | RTO | ETO | BTC | RTC | ETC | ||
DAHG-085C-235A-D1 | 9.000 | 3.916 | 1.529 | 2.169 | 2.069 | 1.507 | 4.255 |
DAHG-085C-280A-D1 | 9.000 | 5.560 | 2.171 | 3.080 | 2.953 | 2.151 | 6.070 |
DAHG-085C-335A-D1 | 9.000 | 7.959 | 3.108 | 4.409 | 4.229 | 3.081 | 8.695 |
DAHG-085C-385A-D1 | 9.000 | ||||||
DAHG-085C-435A-D1 | 9.000 | ||||||
DAHG-100C-335A-D1 | 18.000 | 9.471 | 3.698 | 5.246 | 5.015 | 3.653 | 10.311 |
DAHG-100C-385A-D1 | 18.000 | 12.535 | 4.894 | 6.943 | 6.662 | 4.853 | 13.696 |
DAHG-100C-435A-D1 | 18.000 | 15.994 | 6.245 | 8.860 | 8.501 | 6.193 | 17.476 |
DAHG-100C-485A-D1 | 18.000 | ||||||
DAHG-100C-535A-D1 | 18.000 | ||||||
DAHG-130C-385A-D1 | 32.000 | 16.481 | 6.435 | 9.129 | 8.759 | 6.380 | 18.007 |
DAHG-130C-435A-D1 | 32.000 | 21.082 | 8.232 | 11.678 | 11.205 | 8.163 | 23.037 |
DAHG-130C-485A-D1 | 32.000 | 26.207 | 10.233 | 14.517 | 13.959 | 10.169 | 28.699 |
DAHG-130C-535A-D1 | 32.000 | ||||||
DAHG-130C-585A-D1 | 32.000 | ||||||
DAHG-130C-635A-D1 | 32.000 |
Modellnummer | Maximales Drehmoment Nm | 5 BAR SYMMETRISCH Abtriebsdrehmoment (Nm) | |||||
BTO | RTO | ETO | BTC | RTC | ETC | ||
DAHG-085S-235A-D1 | 9.000 | 2.494 | 1.548 | 2.726 | 2.453 | 1.525 | 2.681 |
DAHG-085S-280A-D1 | 9.000 | 3.541 | 2.198 | 3.870 | 3.500 | 2.177 | 3.825 |
DAHG-085S-335A-D1 | 9.000 | 5.069 | 3.146 | 5.541 | 5.013 | 3.118 | 5.479 |
DAHG-085S-385A-D1 | 9.000 | 6.708 | 4.164 | 7.333 | 6.652 | 4.137 | 7.271 |
DAHG-085S-435A-D1 | 9.000 | ||||||
DAHG-100S-335A-D1 | 18.000 | 6.032 | 3.744 | 6.593 | 5.945 | 3.697 | 6.498 |
DAHG-100S-385A-D1 | 18.000 | 7.983 | 4.955 | 8.726 | 7.896 | 4.911 | 8.631 |
DAHG-100S-435A-D1 | 18.000 | 10.212 | 6.339 | 11.163 | 10.102 | 6.283 | 11.042 |
DAHG-100S-485A-D1 | 18.000 | 12.695 | 7.880 | 13.876 | 12.584 | 7.827 | 13.756 |
DAHG-100S-535A-D1 | 18.000 | 15.286 | 9.554 | 16.860 | 15.178 | 9.486 | 16.741 |
DAHG-100S-585A-D1 | 18.000 | ||||||
DAHG-130S-385A-D1 | 32.000 | 10.496 | 6.515 | 11.473 | 10.382 | 6.457 | 11.348 |
DAHG-130S-435A-D1 | 32.000 | 13.427 | 8.334 | 14.676 | 13.282 | 8.261 | 14.518 |
DAHG-130S-485A-D1 | 32.000 | 16.691 | 10.361 | 18.244 | 16.546 | 10.291 | 18.086 |
DAHG-130S-535A-D1 | 32.000 | 20.351 | 12.633 | 22.245 | 20.206 | 12.567 | 22.086 |
DAHG-130S-585A-D1 | 32.000 | 24.382 | 15.135 | 26.651 | 24.237 | 15.074 | 26.492 |
DAHG-130S-635A-D1 | 32.000 | 28.785 | 17.868 | 31.464 | 28.640 | 17.813 | 31.306 |
Modellnummer | Maximales Drehmoment Nm | 5,5 BAR ASYMMETRISCH Abtriebsdrehmoment (Nm) | |||||
BTO | RTO | ETO | BTC | RTC | ETC | ||
DAHG-085C-235A-D1 | 9.000 | 4.342 | 1.703 | 2.382 | 2.269 | 1.665 | 4.677 |
DAHG-085C-280A-D1 | 9.000 | 6.164 | 2.418 | 3.381 | 3.243 | 2.380 | 6.684 |
DAHG-085C-335A-D1 | 9.000 | ||||||
DAHG-085C-385A-D1 | 9.000 | ||||||
DAHG-085C-435A-D1 | 9.000 | ||||||
DAHG-100C-335A-D1 | 18.000 | 10.381 | 4.072 | 5.694 | 5.487 | 4.028 | 11.309 |
DAHG-100C-385A-D1 | 18.000 | 13.711 | 5.378 | 7.521 | 7.267 | 5.334 | 14.977 |
DAHG-100C-435A-D1 | 18.000 | ||||||
DAHG-100C-485A-D1 | 18.000 | ||||||
DAHG-100C-535A-D1 | 18.000 | ||||||
DAHG-130C-385A-D1 | 32.000 | 18.149 | 7.087 | 10.053 | 9.645 | 7.026 | 19.830 |
DAHG-130C-435A-D1 | 32.000 | 23.212 | 9.063 | 12.858 | 12.337 | 8.987 | 25.364 |
DAHG-130C-485A-D1 | 32.000 | 28.855 | 11.267 | 15.984 | 15.370 | 11.196 | 31.598 |
DAHG-130C-535A-D1 | 32.000 | ||||||
DAHG-130C-585A-D1 | 32.000 | ||||||
DAHG-130C-635A-D1 | 32.000 |
Modellnummer | Maximales Drehmoment Nm | 5,5 BAR SYMMETRISCH Abtriebsdrehmoment (Nm) | |||||
BTO | RTO | ETO | BTC | RTC | ETC | ||
DAHG-085S-235A-D1 | 9.000 | 2.747 | 1.705 | 3.003 | 2.702 | 1.680 | 2.953 |
DAHG-085S-280A-D1 | 9.000 | 3.900 | 2.421 | 4.263 | 3.855 | 2.397 | 4.213 |
DAHG-085S-335A-D1 | 9.000 | 5.583 | 3.465 | 6.102 | 5.521 | 3.434 | 6.035 |
DAHG-085S-385A-D1 | 9.000 | 7.388 | 4.586 | 8.075 | 7.326 | 4.556 | 8.008 |
DAHG-085S-435A-D1 | 9.000 | ||||||
DAHG-100S-335A-D1 | 18.000 | 6.644 | 4.124 | 7.262 | 6.548 | 4.072 | 7.157 |
DAHG-100S-385A-D1 | 18.000 | 8.791 | 5.457 | 9.609 | 8.695 | 5.408 | 9.505 |
DAHG-100S-435A-D1 | 18.000 | 11.244 | 6.979 | 12.290 | 11.122 | 6.918 | 12.157 |
DAHG-100S-485A-D1 | 18.000 | ||||||
DAHG-100S-535A-D1 | 18.000 | ||||||
DAHG-100S-585A-D1 | 18.000 | ||||||
DAHG-130S-385A-D1 | 32.000 | 11.559 | 7.175 | 12.634 | 11.432 | 7.111 | 12.496 |
DAHG-130S-435A-D1 | 32.000 | 14.783 | 9.176 | 16.159 | 14.623 | 9.095 | 15.984 |
DAHG-130S-485A-D1 | 32.000 | 18.377 | 11.407 | 20.087 | 18.217 | 11.330 | 19.913 |
DAHG-130S-535A-D1 | 32.000 | 22.402 | 13.906 | 24.487 | 22.243 | 13.834 | 24.313 |
DAHG-130S-585A-D1 | 32.000 | 26.835 | 16.657 | 29.332 | 26.675 | 16.591 | 29.157 |
DAHG-130S-635A-D1 | 32.000 |
Modellnummer | Maximales Drehmoment Nm | 6 BAR ASYMMETRISCH Abtriebsdrehmoment (Nm) | |||||
BTO | RTO | ETO | BTC | RTC | ETC | ||
DAHG-085C-235A-D1 | 9.000 | 4.711 | 1.839 | 2.609 | 2.489 | 1.813 | 5.118 |
DAHG-085C-280A-D1 | 9.000 | 6.688 | 2.611 | 3.704 | 3.552 | 2.587 | 7.302 |
DAHG-085C-335A-D1 | 9.000 | ||||||
DAHG-085C-385A-D1 | 9.000 | ||||||
DAHG-085C-435A-D1 | 9.000 | ||||||
DAHG-100C-335A-D1 | 18.000 | 11.393 | 4.448 | 6.311 | 6.033 | 4.395 | 12.403 |
DAHG-100C-385A-D1 | 18.000 | 15.042 | 5.873 | 8.332 | 7.994 | 5.824 | 16.435 |
DAHG-100C-435A-D1 | 18.000 | ||||||
DAHG-100C-485A-D1 | 18.000 | ||||||
DAHG-100C-535A-D1 | 18.000 | ||||||
DAHG-130C-385A-D1 | 32.000 | 19.817 | 7.738 | 10.977 | 10.532 | 7.672 | 21.653 |
DAHG-130C-435A-D1 | 32.000 | 25.341 | 9.895 | 14.038 | 13.470 | 9.812 | 27.692 |
DAHG-130C-485A-D1 | 32.000 | ||||||
DAHG-130C-535A-D1 | 32.000 | ||||||
DAHG-130C-585A-D1 | 32.000 | ||||||
DAHG-130C-635A-D1 | 32.000 |
Modellnummer | Maximales Drehmoment Nm | 6 BAR SYMMETRISCH Abtriebsdrehmoment (Nm) | |||||
BTO | RTO | ETO | BTC | RTC | ETC | ||
DAHG-085S-235A-D1 | 9.000 | 3.000 | 1.862 | 3.279 | 2.951 | 1.835 | 3.225 |
DAHG-085S-280A-D1 | 9.000 | 4.259 | 2.644 | 4.656 | 4.210 | 2.618 | 4.602 |
DAHG-085S-335A-D1 | 9.000 | 6.097 | 3.785 | 6.664 | 6.030 | 3.750 | 6.591 |
DAHG-085S-385A-D1 | 9.000 | ||||||
DAHG-085S-435A-D1 | 9.000 | ||||||
DAHG-100S-335A-D1 | 18.000 | 7.256 | 4.504 | 7.931 | 7.151 | 4.447 | 7.816 |
DAHG-100S-385A-D1 | 18.000 | 9.599 | 5.959 | 10.493 | 9.495 | 5.905 | 10.378 |
DAHG-100S-435A-D1 | 18.000 | 12.275 | 7.620 | 13.418 | 12.143 | 7.552 | 13.273 |
DAHG-100S-485A-D1 | 18.000 | ||||||
DAHG-100S-535A-D1 | 18.000 | ||||||
DAHG-100S-585A-D1 | 18.000 | ||||||
DAHG-130S-385A-D1 | 32.000 | 12.621 | 7.834 | 13.796 | 12.483 | 7.764 | 13.645 |
DAHG-130S-435A-D1 | 32.000 | 16.139 | 10.018 | 17.641 | 15.965 | 9.930 | 17.451 |
DAHG-130S-485A-D1 | 32.000 | 20.063 | 12.454 | 21.930 | 19.889 | 12.370 | 21.740 |
DAHG-130S-535A-D1 | 32.000 | 24.454 | 15.180 | 26.730 | 24.280 | 15.101 | 26.539 |
DAHG-130S-585A-D1 | 32.000 | 29.288 | 18.180 | 32.013 | 29.113 | 18.108 | 31.823 |
DAHG-130S-635A-D1 | 32.000 |
Modellnummer | Maximales Drehmoment Nm | 7 BAR ASYMMETRISCH Abtriebsdrehmoment (Nm) | |||||
BTO | RTO | ETO | BTC | RTC | ETC | ||
DAHG-085C-235A-D1 | 9.000 | 5.505 | 2.149 | 3.049 | 2.909 | 2.119 | 5.981 |
DAHG-085C-280A-D1 | 9.000 | 7.816 | 3.052 | 4.329 | 4.151 | 3.024 | 8.534 |
DAHG-085C-335A-D1 | 9.000 | ||||||
DAHG-085C-385A-D1 | 9.000 | ||||||
DAHG-085C-435A-D1 | 9.000 | ||||||
DAHG-100C-335A-D1 | 18.000 | 13.333 | 5.273 | 7.384 | 7.084 | 5.293 | 14.566 |
DAHG-100C-385A-D1 | 18.000 | ||||||
DAHG-100C-435A-D1 | 18.000 | ||||||
DAHG-100C-485A-D1 | 18.000 | ||||||
DAHG-100C-535A-D1 | 18.000 | ||||||
DAHG-130C-385A-D1 | 32.000 | 23.154 | 9.041 | 12.826 | 12.305 | 8.964 | 25.298 |
DAHG-130C-435A-D1 | 32.000 | 29.601 | 11.558 | 16.397 | 15.734 | 11.461 | 32.346 |
DAHG-130C-485A-D1 | 32.000 | ||||||
DAHG-130C-535A-D1 | 32.000 | ||||||
DAHG-130C-585A-D1 | 32.000 | ||||||
DAHG-130C-635A-D1 | 32.000 |
Modellnummer | Maximales Drehmoment Nm | 7 BAR SYMMETRISCH Abtriebsdrehmoment (Nm) | |||||
BTO | RTO | ETO | BTC | RTC | ETC | ||
DAHG-085S-235A-D1 | 9.000 | 3.506 | 2.176 | 3.832 | 3.448 | 2.145 | 3.769 |
DAHG-085S-280A-D1 | 9.000 | 4.978 | 3.090 | 5.441 | 4.920 | 3.060 | 5.378 |
DAHG-085S-335A-D1 | 9.000 | 7.125 | 4.423 | 7.788 | 7.047 | 4.383 | 7.703 |
DAHG-085S-385A-D1 | 9.000 | ||||||
DAHG-085S-435A-D1 | 9.000 | ||||||
DAHG-100S-335A-D1 | 18.000 | 8.479 | 5.263 | 9.268 | 8.357 | 5.198 | 9.135 |
DAHG-100S-385A-D1 | 18.000 | 11.215 | 6.962 | 12.259 | 11.093 | 6.900 | 12.126 |
DAHG-100S-435A-D1 | 18.000 | 14.148 | 8.843 | 15.605 | 13.997 | 8.748 | 15.438 |
DAHG-100S-485A-D1 | 18.000 | ||||||
DAHG-100S-535A-D1 | 18.000 | ||||||
DAHG-100S-585A-D1 | 18.000 | ||||||
DAHG-130S-385A-D1 | 32.000 | 14.746 | 9.153 | 16.118 | 14.585 | 9.072 | 15.943 |
DAHG-130S-435A-D1 | 32.000 | 18.852 | 11.702 | 20.606 | 18.649 | 11.599 | 20.384 |
DAHG-130S-485A-D1 | 32.000 | 23.435 | 14.547 | 25.616 | 23.232 | 14.449 | 25.394 |
DAHG-130S-535A-D1 | 32.000 | 28.557 | 17.727 | 31.215 | 28.354 | 17.635 | 30.993 |
DAHG-130S-585A-D1 | 32.000 | ||||||
DAHG-130S-635A-D1 | 32.000 |
Modellnummer | Maximales Drehmoment Nm | 8,5 BAR ASYMMETRISCH Abtriebsdrehmoment (Nm) | |||||
BTO | RTO | ETO | BTC | RTC | ETC | ||
DAHG-085C-235A-D1 | 9.000 | 6.697 | 2.615 | 3.710 | 3.539 | 2.578 | 7.276 |
DAHG-085C-280A-D1 | 9.000 | ||||||
DAHG-085C-335A-D1 | 9.000 | ||||||
DAHG-085C-385A-D1 | 9.000 | ||||||
DAHG-085C-435A-D1 | 9.000 | ||||||
DAHG-100C-335A-D1 | 18.000 | 16.190 | 6.403 | 8.966 | 8.602 | 6.427 | 17.687 |
DAHG-100C-385A-D1 | 18.000 | ||||||
DAHG-100C-435A-D1 | 18.000 | ||||||
DAHG-100C-485A-D1 | 18.000 | ||||||
DAHG-100C-535A-D1 | 18.000 | ||||||
DAHG-130C-385A-D1 | 32.000 | 28.158 | 10.995 | 15.598 | 14.965 | 10.902 | 30.767 |
DAHG-130C-435A-D1 | 32.000 | ||||||
DAHG-130C-485A-D1 | 32.000 | ||||||
DAHG-130C-535A-D1 | 32.000 | ||||||
DAHG-130C-585A-D1 | 32.000 | ||||||
DAHG-130C-635A-D1 | 32.000 |
Modellnummer | Maximales Drehmoment Nm | 8,5 BAR SYMMETRISCH Abtriebsdrehmoment (Nm) | |||||
BTO | RTO | ETO | BTC | RTC | ETC | ||
DAHG-085S-235A-D1 | 9.000 | 4.265 | 2.647 | 4.662 | 4.195 | 2.609 | 4.585 |
DAHG-085S-280A-D1 | 9.000 | 6.055 | 3.758 | 6.619 | 5.985 | 3.722 | 6.542 |
DAHG-085S-335A-D1 | 9.000 | ||||||
DAHG-085S-385A-D1 | 9.000 | ||||||
DAHG-085S-435A-D1 | 9.000 | ||||||
DAHG-100S-335A-D1 | 18.000 | 10.315 | 6.403 | 11.274 | 10.166 | 6.323 | 11.112 |
DAHG-100S-385A-D1 | 18.000 | 13.458 | 8.411 | 14.843 | 13.346 | 8.342 | 14.720 |
DAHG-100S-435A-D1 | 18.000 | ||||||
DAHG-100S-485A-D1 | 18.000 | ||||||
DAHG-100S-535A-D1 | 18.000 | ||||||
DAHG-100S-585A-D1 | 18.000 | ||||||
DAHG-130S-385A-D1 | 32.000 | 17.933 | 11.132 | 19.602 | 17.738 | 11.033 | 19.389 |
DAHG-130S-435A-D1 | 32.000 | 22.921 | 14.228 | 25.054 | 22.674 | 14.103 | 24.784 |
DAHG-130S-485A-D1 | 32.000 | 28.493 | 17.687 | 31.145 | 28.246 | 17.568 | 30.875 |
DAHG-130S-535A-D1 | 32.000 | ||||||
DAHG-130S-585A-D1 | 32.000 | ||||||
DAHG-130S-635A-D1 | 32.000 |
BESCHICHTUNGSZYKLUS OMAL
Die in der Tabelle angeführten Beschichtungen der Schwerlast-Stellantriebe Heavy Duty (Standard OMAL) ermöglichen die Installation der Stellantriebe in Außenbereichen: Chemieanlagen, Gasleitungen, Raffinerien und Off-Shore-Anwendungen. Auf Anfrage Beschichtung nach Kundenwunsch möglich.
VORBEREITUNG DER OBERFLÄCHE | SANDSTRAHLUNG GRAD SA 2.1/2 | |
Beschichtung | Lackart | DICKE |
Erste Schicht | Anorganische Zinkgrundierung | 75 µ |
Zwischenschicht | Epoxy | 110 µ |
Letzte Schicht | Polyurethan | 40 µ |
GESAMTDICKE | 225 µ | |
Standardbeschichtung: RAL 5010 |
ZENTRALGEHÄUSE - ERHÄLTLICHE KONFIGURATIONEN
Asymmetrisches Design
Sehr hohes Öffnungsmoment (BTO) mit einem hohen Abfall während der letzten Öffnungsphase (ETO). Das Schließmoment (BTC) ist sehr viel niedriger als das Öffnungsmoment (BTO).
Symmetrisches Design
Die Drehmomentkurve ist ausgeglichener; die Werte BTO (break to open), ETO (end to open), BTC (break to close) und ETC (end to close) sind ähnlich.
Pumpe
Hydraulikzylinder
Öltank
Rückschlagventil
Sicherheitsventil
MANUELLE NOTBEDIENUNG AUSKUPPELBAR FÜR DOPPELTWIRKENDEN ANTRIEB (nur für Ausführungen mit Ventilkörper 085)
Das Antriebsdesign sieht Verbindungen nach den aktuellsten internationalen Standards vor, um die Verbindung zu Ventilen und Zubehör zu gewährleisten bzw. zu erleichtern. Auf Anfrage umfasst der OMAL-Service auch die Lieferung von Montagesätzen, Verbindern und Verbindungsstücken.
Der modulare Aufbau der HEAVY DUTY-Stellantriebe von OMAL garantiert eine vollständige Anwendungsvielfalt.
Der modulare Aufbau ermöglicht die Montage der Bestandteile gemäß den Anwendungsanforderungen.
