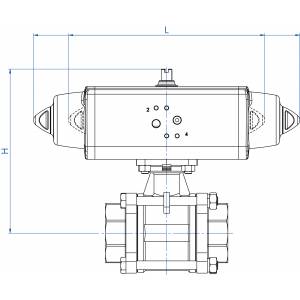

| Artikel | Größe | Nenndruck | Aktuator | Ventil | H [mm] | L [mm] | Gewicht (kg] | Montagesatz | |
|---|---|---|---|---|---|---|---|---|---|
| SG424H402 | DN 8 1/4” | PN 63 | SRN0015401S | V424H402 | 122.8 | 233.2 | 1.7 | KCF042649 | |
| SG424H403 | DN 10 3/8” | PN 63 | SRN0015401S | V424H403 | 122.8 | 233.2 | 1.7 | KCF042649 | |
| SG424H404 | DN 15 1/2” | PN 63 | SRN0015401S | V424H404 | 122.8 | 233.2 | 1.8 | KCF042649 | |
| SG424H405 | DN 20 3/4” | PN 63 | SRN0015401S | V424H405 | 125.8 | 233.2 | 1.9 | KCF042649 | |
| SG424H406 | DN 25 1” | PN 63 | SRN0030402S | V424H406G | 144 | 258.8 | 3.2 | KCF052655 | |
| SG424H407 | DN 32 1” 1/4 | PN 63 | SRN0030402S | V424H407G | 150 | 258.8 | 3.6 | KCF052655 | |
| SG424H408 | DN 40 1” 1/2 | PN 63 | SRN0053401S | V424H408 | 174.8 | 304.2 | 6 | KCF072732 | |
| SG424H409 | DN 50 2” | PN 63 | SRN0060401S | V424H409G | 187.6 | 338.5 | 7.2 | KCF072849 | |
| SG424H410 | DN 65 2” 1/2 | PN 63 | SRN0120401S | V424H410G | 242.7 | 409.6 | 16.6 | KCF102734 | |
| SG424H411 | DN 80 3” | PN 63 | SRN0240401S | V424H411 | 279 | 520.5 | 24.3 | KCF122735 | |
| SG424H412 | DN 100 4” | PN 63 | SRN0360401S | V424H412 | 322 | 613 | 34.6 | KCF125286 | |
